Portable Winch 60kN swing cheek single pulley

Product Description

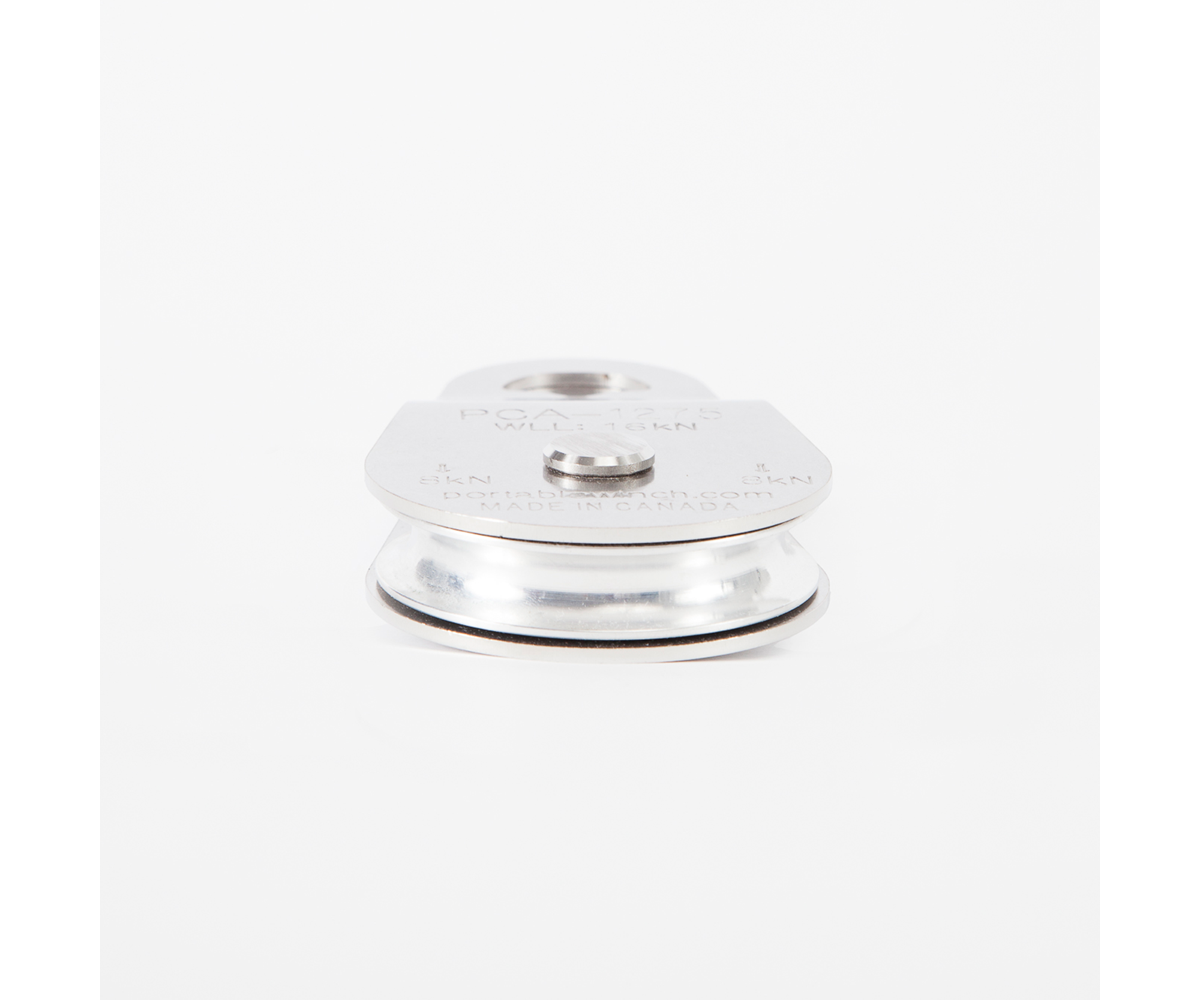

This stainless steel swing side snatch block features a lightweight 76 mm diameter deep groove aluminum sheave, with stainless steel plates that swing open to install rope. Sintered bronze bushing on stainless steel shaft provides 98% efficiency.

Particularly useful for use when doubling the line, the rope cannot accidentally come out of the block. Also very useful to redirect a load or to pull upward in a hill. Use the steel locking carabiners to anchor to a polyester sling. Smaller and lighter than the PCA-1274 pulley.

Ideal rope diameter: 10 mm.

Minimum Breaking Load (metric) : 60 kN (6125 kg)
Working Load Limit (metric) : N/A
Material : Sides: Stainless steel. Sheave: Aluminum

Weight (metric) : 0,69 kg
Diameter (metric) : 76 mm
Length (metric) : 17 cm
Width (metric) : 11 cm
Height (metric) : 11 cm

Minimum diameter (metric) : 6 mm
Maximum diameter (metric) : 10 mm

Additional Information : Not designed for steel cable.
Additional information : The NEWTON is the International System unit for force; it is equal to the amount of net force required to accelerate a mass of one kilogram at a rate of one meter per second squared. — The WORKING LOAD LIMIT (WLL) is the maximum load which should not be exceeded under any condition. — The MINIMUM BREAKING STRENGTH (MBS) is observed during a destructive test. You should divide it by an appropriate safety factor.
